Mentor Handbook · 01 Foundations You Must Feel

The numbers to know cold

By the end of this chapter you'll be able to stand at a whiteboard and rattle off the five numbers that describe an H100 — and, more importantly, use them to answer real questions on the spot: "will this be fast?", "why is this slow?", "how much of the chip am I wasting?" These five numbers turn vague hand-waving into confident arithmetic. Once a mentor owns them, they stop guessing and start estimating.

There are exactly five. Write them at the top corner of the board on day one and leave them there for the whole workshop. Everything you teach afterward is a story about one of these numbers.

989 TFLOP/s   — how fast it can do math
3.35 TB/s     — how fast it can move data
132 SMs       — how many worker-teams there are
228 KiB       — the on-chip scratchpad per team
32 threads    — the size of one lockstep squad (a "warp")

🎓 Teaching note

Don't explain all five at once. Write them up as a list first, tell the room "by Friday every one of these will feel obvious," and then unveil them one at a time as you go. The reveal is the payoff. A number you had to wait for lands harder than one dumped on you.

Number one: 989 TFLOP/s — the speed of the math

TFLOP/s means trillion floating-point operations per second. A "floating-point operation" is one multiply or one add on decimal numbers. So 989 TFLOP/s means the chip can do nearly a thousand trillion little multiply-and-adds every second. That is a 1 with fifteen zeros after it, per second.

🧠 Metaphor

Picture a colossal room full of tiny calculators, and every one of them can punch in a multiply-and-add. 989 TFLOP/s is the whole room finishing a thousand-trillion sums in the time it takes you to say "one." It is not one genius doing math impossibly fast — it is an ocean of ordinary calculators all going at once. That distinction is the GPU.

Here's the catch to plant early: 989 is a special-precision number. It's the speed when the inputs are BF16 — a 16-bit "short" number format — and the work goes through the chip's matrix-multiply units (the tensor cores, next chapter). Plain 32-bit math on the ordinary cores gets only about 60 TFLOP/s. Same chip. The 989 path is roughly 16× faster than the 60 path.

✨ The click

Say this out loud and watch it land: "The same H100 is either a 60-TFLOP/s chip or a 989-TFLOP/s chip depending on whether you used the right units and the right number format. Most of this workshop's second half is about earning the difference between those two numbers." That gap is the whole reason tensor cores exist.

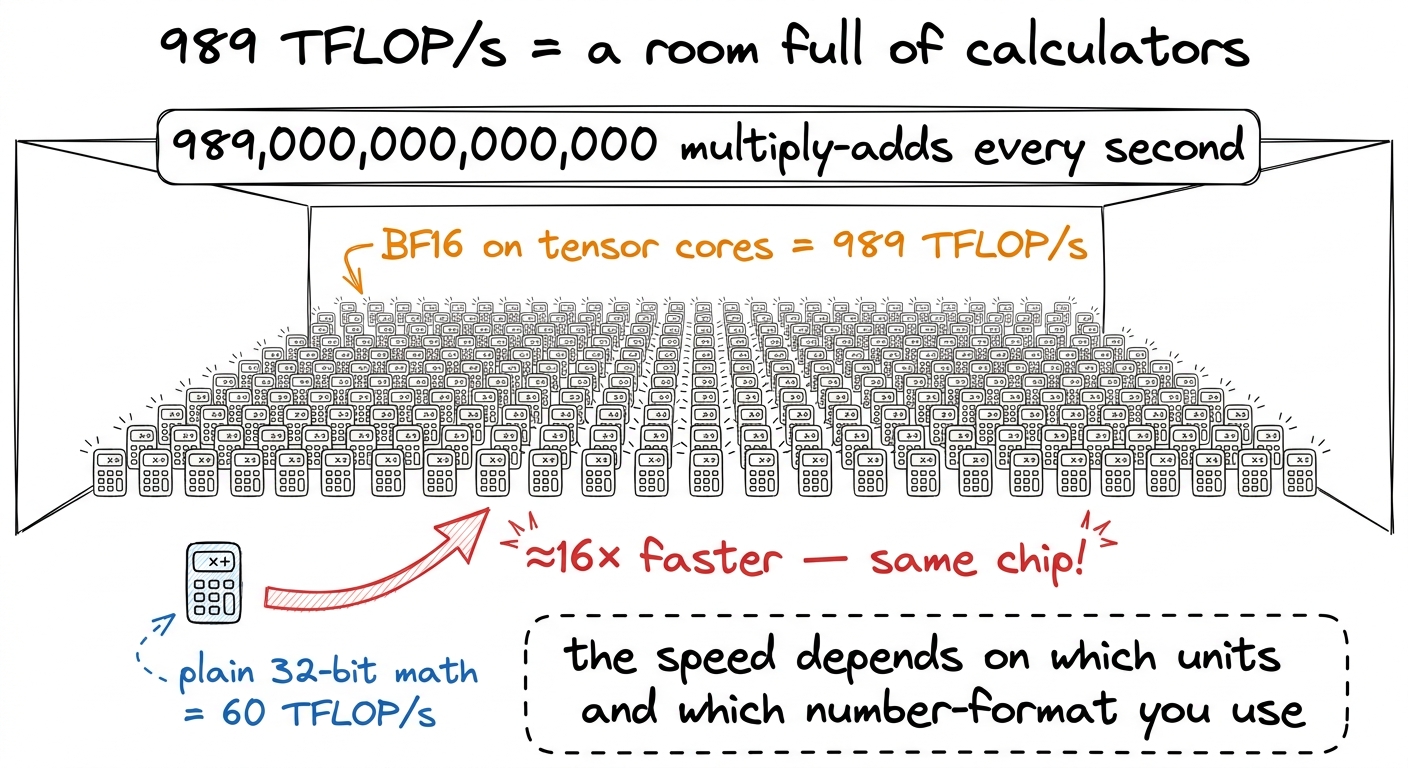

The math ceiling drawn as a room of calculators — and the 16× gap between using the chip well and using it badly.

Number two: 3.35 TB/s — the speed of the plumbing

TB/s means terabytes per second — trillions of bytes moved per second. The H100's main memory (called HBM, high-bandwidth memory) can pour data into the chip at 3.35 TB/s. That's the width of the pipe feeding all those calculators.

🧠 Metaphor

Number one was a room full of cooks. Number two is the hallway that brings them ingredients. 3.35 TB/s is a very wide hallway — but the cooks (989 TFLOP/s) are even faster than the hallway is wide. So the cooks spend most of their day tapping their feet, waiting for the next tray of rice. That mismatch — fast cooks, narrower hallway — is the single most important tension in the entire course.

Now put the two numbers together — that's where the magic is. The math chews 989 trillion operations per second; the pipe delivers 3.35 trillion bytes per second. Divide them:

989 TFLOP/s  ÷  3.35 TB/s  ≈  295 operations per byte

This number, ~295, is called the ridge point. It says: for every single byte you drag in from memory, you'd better do about 295 operations on it — or the calculators starve while the pipe struggles to keep up.

🔢 By hand

Do this division on the board, slowly, as real arithmetic. 989 ÷ 3.35 ≈ 295. Then say what it means in plain words: "If your code does fewer than 295 sums per byte it loads, the hallway is your bottleneck and the calculators sit idle. If it does more, the calculators are the bottleneck and the hallway keeps up. 295 is the exact tipping point of this specific chip." Students will remember a number they watched you compute.

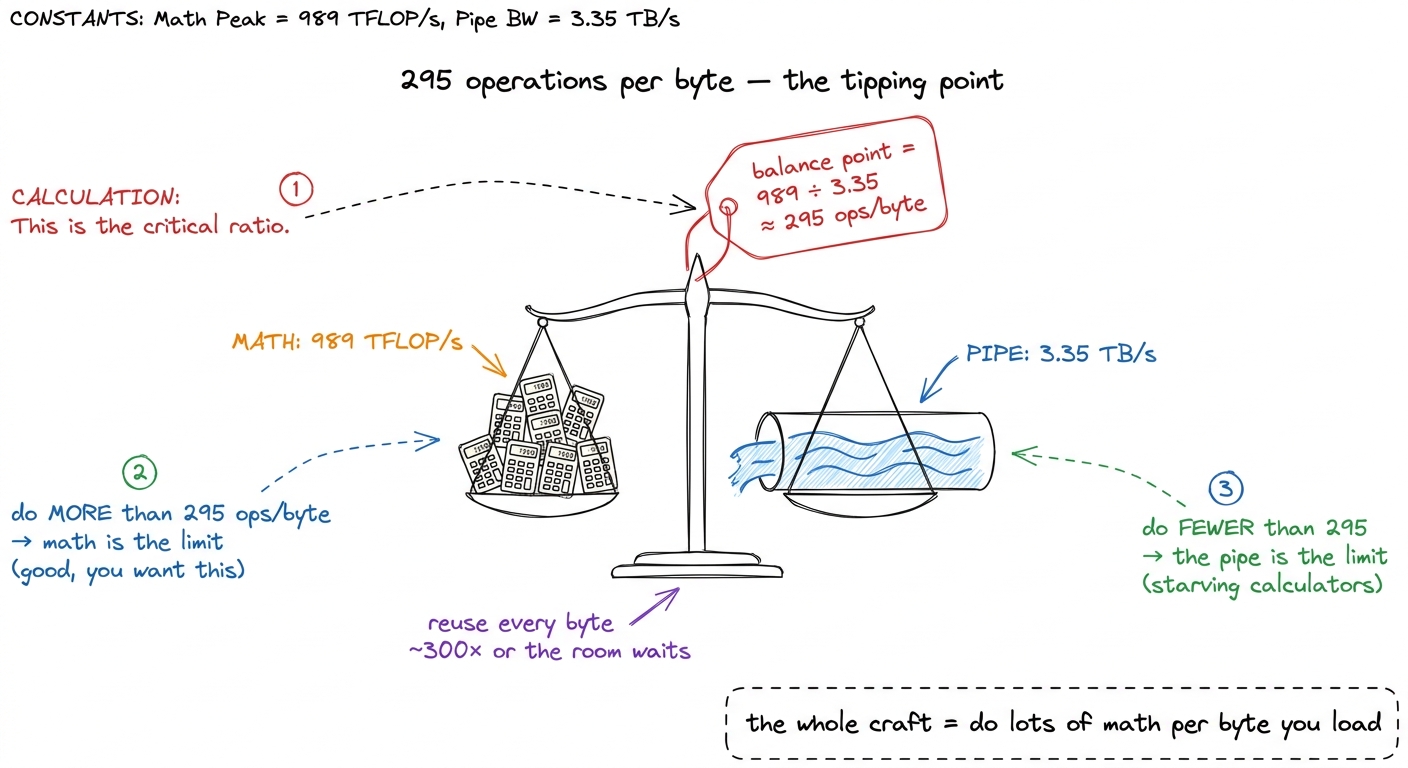

The two headline numbers divided into one: 295 operations per byte, the line between fast and slow.

🏭 In production today

This isn't academic. When vLLM or DeepSeek serve a model to millions of users, the engineers are fighting this exact ratio. A kernel that reuses each byte only a few times lives on the wrong side of 295 and wastes most of a machine that cost a quarter-million dollars. FlashAttention became famous precisely because it slashed how many bytes it moved — pushing attention past the ridge so the expensive tensor cores stayed busy. Every dollar of GPU efficiency in the industry is decided by which side of 295 your code lands on.

⚠️ Where students trip

Students hear "3.35 terabytes per second" and think "that's enormous, memory can't possibly be the problem." Fix it with the ratio, not a speech: "Yes, the pipe is huge. The calculators are just huger. 3.35 is a big number and 989 is a bigger one — that's why the pipe loses." The number sounding infinite is the trap; the division is the escape.

Number three: 132 SMs — the worker-teams

The chip isn't one giant brain. It's 132 near-identical little processors bolted side by side. Each one is called a Streaming Multiprocessor, or SM. When you write GPU code, you're really describing the work for one team, and the machine copies that work across all 132 teams.

🧠 Metaphor

Think of a huge kitchen split into 132 identical cooking stations. Each station has its own cooks, its own little countertop, its own recipe card. You write one recipe; the head chef stamps out 132 copies and every station cooks in parallel. When students later ask "how does one line of my code run on a whole GPU?" — this is the answer. You wrote one station's job; the hardware ran 132 of them.

✨ The click

The jaw-dropper: each of those 132 SMs can keep 2048 threads alive at once. Multiply it on the board — 132 × 2048 ≈ 270,000. "This one chip is juggling a quarter of a million tiny workers at the same instant." Let that number sit. It's the concrete face of the word "parallel."

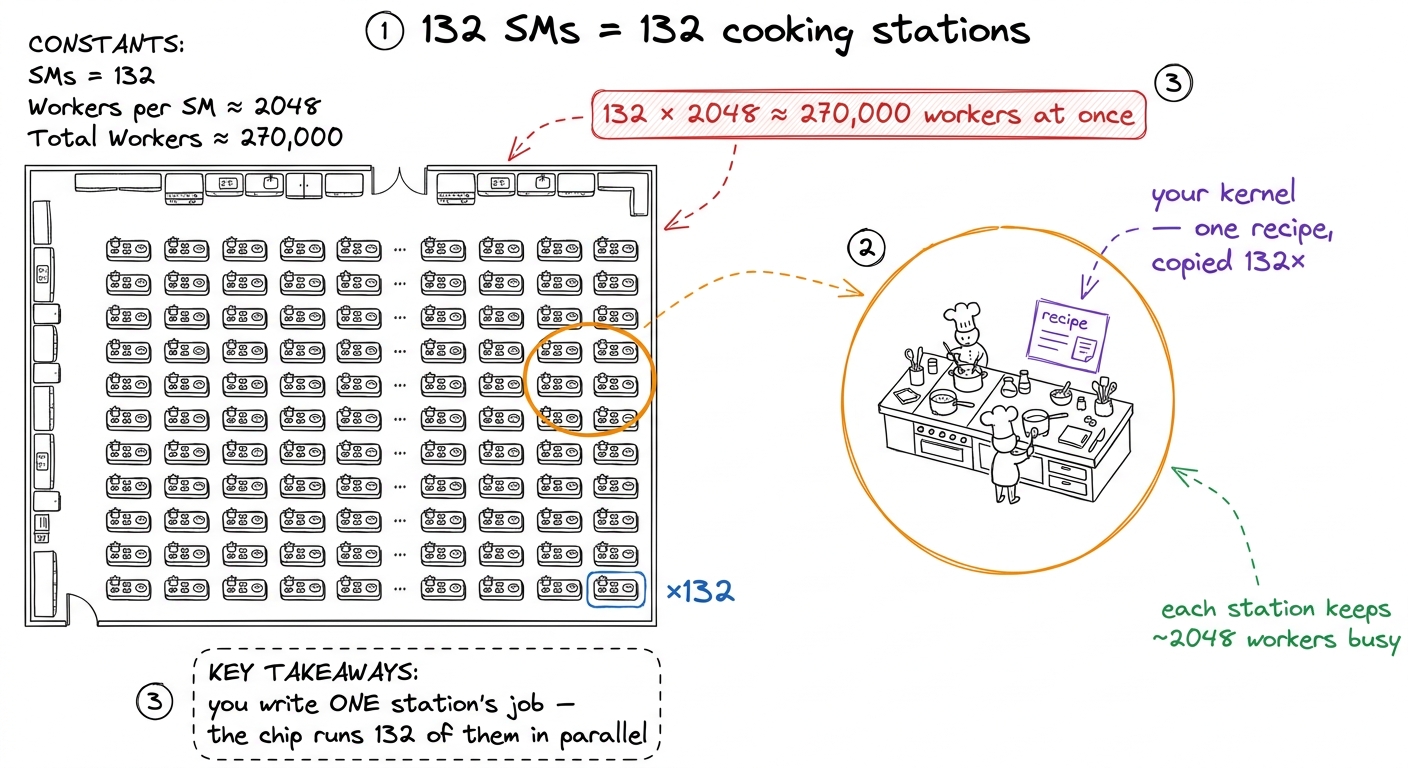

The 132 SMs as 132 identical kitchen stations, all running the one recipe you wrote.

Number four: 228 KiB — the tiny scratchpad

Each of those 132 SMs has a small, blazing-fast scratchpad right next to its calculators. It's called shared memory, and on an H100 an SM can dedicate up to 228 KiB of it to your program. (KiB is kibibytes — 228 KiB is about 233,000 bytes.)

Why does this tiny number matter so much? Because of number two. Main memory (3.35 TB/s) is far and slow. This on-chip scratchpad is near and roughly ten times faster. The entire art of a fast kernel is: haul a chunk of data in from far memory once, park it in this scratchpad, reuse it many times before throwing it away. That reuse is how you reach the good side of the 295 ridge.

🧠 Metaphor

Number two was the long hallway to a distant pantry. 228 KiB is the little countertop right beside each cooking station. You send one runner down the long hallway, grab a big tray of ingredients, drop it on the countertop — and now every cook at the station grabs from the tray a hundred times without anyone walking the hallway again. The countertop is tiny, so you can only hold a small tray at once. That smallness is exactly why kernels are written in tiles.

🔢 By hand

Contrast the two speeds out loud with round numbers. Reaching into this scratchpad takes about 20–30 cycles. Reaching all the way out to main memory takes about 500 cycles — twenty-plus times longer. "So if you can serve a piece of data from the countertop instead of the pantry, you just made that access twenty times faster. Do that for a whole tile of numbers and you've turned a slow kernel into a fast one." The 20-vs-500 gap is the reason shared memory exists.

⚠️ Where students trip

A student sees "228 KiB" and thinks it's a typo — surely a $30,000 chip has more than a couple hundred kilobytes? Fix it: "That's not the chip's memory. The chip has 80 gigabytes. This 228 KiB is the tiny fast countertop per station — deliberately small, because fast-and-near always means small-and-scarce. The whole skill is fitting your working tile into that small space." Separate 'big far memory' from 'tiny near scratchpad' and the confusion dissolves.

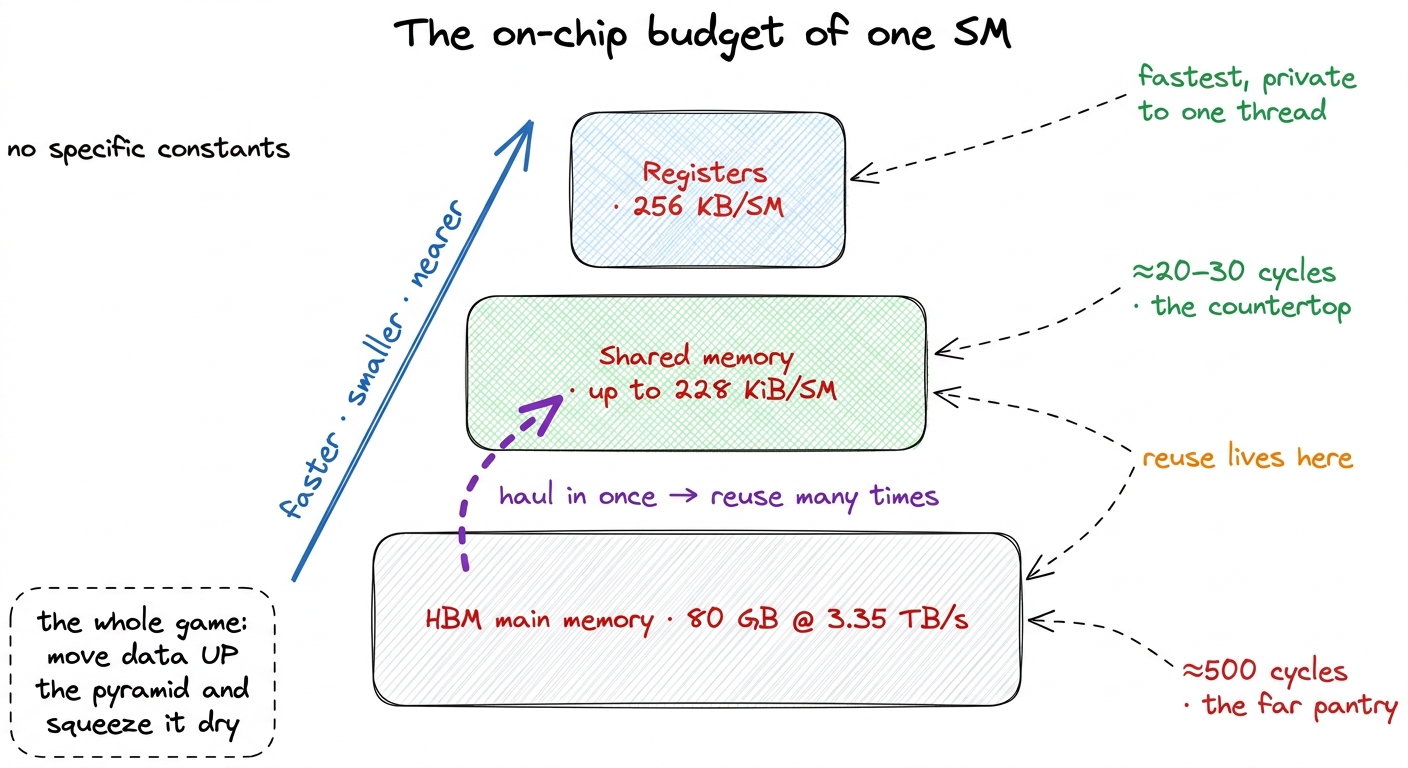

The memory pyramid: 228 KiB of fast near scratchpad sitting above 80 GB of slow far memory.

Number five: 32 threads — the lockstep squad

Inside an SM, workers don't act as loose individuals. They march in fixed squads of exactly 32. A squad of 32 threads is called a warp, and — this is the key fact — all 32 execute the same instruction at the same time, in perfect lockstep. Step, step, step, together.

🧠 Metaphor

A warp is a rowing crew of 32, or a marching band row of 32 — one drummer calls the beat and all 32 oars hit the water on the same stroke. They can't row independently; if one rower wants to do something different, the other 31 have to wait while she does it, then everyone resumes together. That "everyone waits for the odd one out" is the source of a whole family of GPU bugs called divergence.

Why know 32 cold? Two reasons. First, it's why you never launch 30 or 100 threads — you launch multiples of 32, because the hardware hands out work one full squad at a time. Ask for 40 and it runs a squad of 32 plus a squad with 24 rowers sitting idle. Second, 32 is the unit that talks to memory together: if all 32 threads read 32 neighboring addresses, the hardware fetches them in one trip down the hallway instead of 32. That trick is called coalescing, and it's one of the biggest early speedups in the whole workshop.

✨ The click

Here's the number that makes the whole chip snap into focus. 132 SMs × 4 squad-schedulers × 32 threads — write it out — is over 16,000 threads that can literally be stepping at the same instant, and with many squads queued up to hide waiting, the chip juggles ~270,000 in flight. "Thirty-two is the atom. Everything above it — warps, SMs, the whole GPU — is just thirty-twos stacked up." When 32 clicks, the architecture clicks.

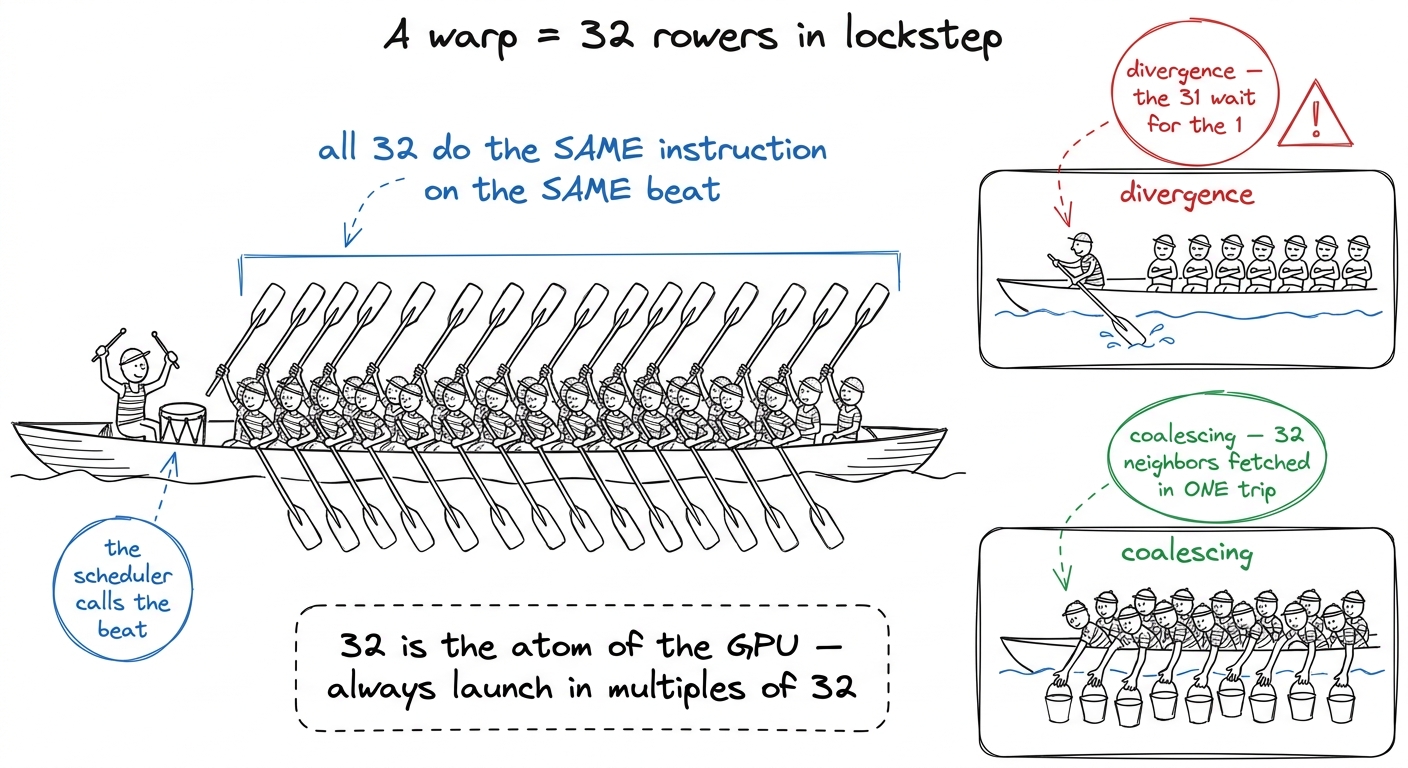

The warp as a 32-oar rowing crew: same stroke together, and why neighbors-in-one-trip (coalescing) is so fast.

1¹ You'll hear people call a warp "SIMT" — single instruction, multiple threads. Don't put that acronym on the board in the first pass. "A squad of 32 that steps together" is the whole idea; the jargon can come later once the picture is solid.

Putting all five to work: the back-of-envelope demo

Now the payoff. Five numbers, and suddenly a mentor can answer questions instead of shrugging. Do this live.

▶️ Live demo

The one demo to run: pick a real matmul, say two 4096×4096 matrices. On the board, count the math: about 2 × 4096³ ≈ 137 billion operations. Count the bytes it must move: about three 4096×4096 tiles of 2-byte numbers ≈ 100 million bytes. Divide: 137e9 ÷ 100e6 ≈ 1,370 operations per byte. Compare to the ridge, 295. "1,370 is way above 295 — so this matmul can be compute-bound; the chip's math is the limit, not its pipe, if we write the kernel well." You just predicted the character of a kernel with five numbers and one division. That's the whole skill.

🎤 Say this at the board

The line that ties the chapter together: "Five numbers. How fast it computes, how fast it's fed, how many teams, how big each team's scratchpad, how big a squad. Give me those five and I can tell you — before writing a line of code — whether your kernel will be starved or fed, and how much of this expensive machine you're actually going to use." Say it, then point back at the five numbers still sitting in the corner of the board.

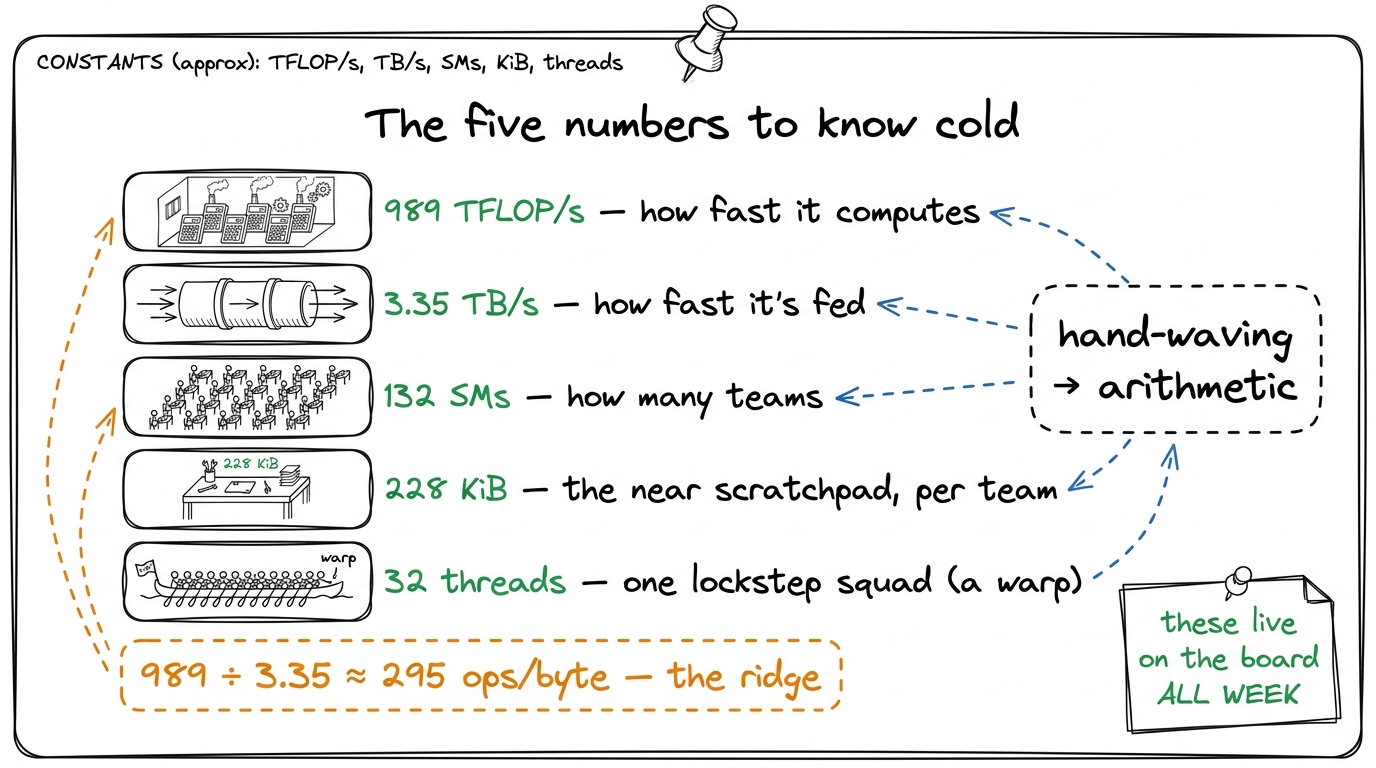

The keeper: the five numbers plus the one you derive from them, drawn as a pin-up cheat card for the whole workshop.

🏭 In production today

Ground it before you close. These aren't trivia — they are the numbers on the spec sheet that decides billion-dollar cluster purchases. When a lab chooses H100 vs B200, when DeepSeek tunes a kernel to shave 10% off its serving bill, when a team debates FP8 vs BF16 — they are arguing about exactly these five numbers and the ridge you divide out of them. A mentor who owns these five can read any GPU announcement and immediately know what got bigger and what it means.

You can now teach

989 TFLOP/s as a room full of calculators — and the 16× gap between the fast (BF16 + tensor core) path and the slow (plain 32-bit) path on the same chip.
3.35 TB/s as the feeding pipe, and why — despite sounding infinite — it's the bottleneck because the math is even faster.
The ridge point, ~295 ops/byte, derived live by dividing the first two numbers, and what each side of it means for whether a kernel starves.
132 SMs as 132 identical cooking stations running one recipe in parallel, juggling ~270,000 workers at once.
228 KiB of shared memory as the tiny fast countertop, the 20-vs-500-cycle speed gap, and why reuse-in-scratchpad is the whole craft.
32 threads as a lockstep rowing crew (a warp) — why you launch in multiples of 32, and why 32-neighbors-in-one-trip (coalescing) is an early big win.
The back-of-envelope demo: using all five numbers to predict, before writing code, whether a real matmul will be compute-bound or starved.
